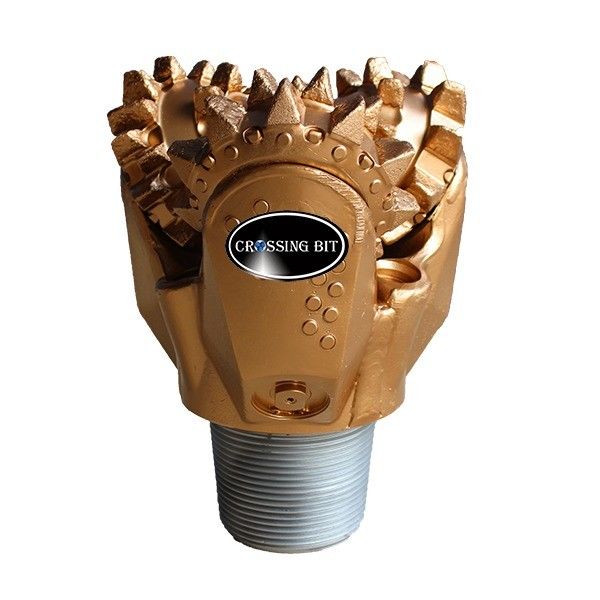

Name: 311MM Mill Tooth Rock Tricone Drill Bit 12 1/4 Inches
Brand: 311MM Mill Tooth Rock Tricone Drill Bit 12 1/4 Inches
SKU: 311MM Mill Tooth Rock Tricone Drill Bit 12 1/4 Inches
Rating: 4.5 (175 reviews)

Home > products > Tricone Drill Bit >

311MM Mill Tooth Rock Tricone Drill Bit 12 1/4 Inches

311MM Tricone Drill Bit

Rock Tricone Drill Bit

12 1/4 Inches mill tooth bit drilling

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

311MM Mill Tooth Rock Tricone Drill Bit 12 1/4 Inches

Product Details

Processing Type:

Forging

Thread Connection:

4 1/2 API Reg Pin

Nozzle Type:

Fixed

Bearing Type:

Journal Bearing

Cutting Structure:

Steel Tooth

Formation Type:

Soft To Medium Hard Formation

Seal Type:

Rubber O-ring

Material:

Tungsten Carbide Insert

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

Three cone drill bits have excellent drilling efficiency. Due to its unique cutting structure and working principle, it can quickly break rocks and improve drilling speed. At the same time, the wear resistance and high temperature resistance of the drill bit are also excellent, which can maintain stable performance under long-term and high load working conditions.

In addition, the three cone drill bit also has high drilling accuracy. Its precise cutting structure and stable drilling performance enable the drill bit to accurately control the diameter and shape of the wellbore, improving drilling quality.

PRODUCT SPECIFICATIONS
product name	12 1/4 inch CR115 mill tooth tricone bit
size	12 1/4 inch,311.1mm
model number	CR115
series	CR
tooth type	mill tooth
connection	6 5/8" Reg PIN
bearing	rubber sealed roller bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	101kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATIONS
very soft with low compressive strength and high drillability,such as soft shale,clay and salt bed,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	116,117	126,127	136,137	216,217	317	337
WOB(KN/mm)	0.35~0.90	0.35~1.00	0.35~1.05	0.35~1.2	0.7~1.30	0.80~1.40
RPM(r/min)	150~80	150~70	120~60	90~50	80~45	75~45

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
