20 Inch Tci Tricone Bit,IADC535 Tricone Drill Bits New Forging Water Drilling Rotary

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

20 Inch Tci Tricone Bit,IADC535 Tricone Drill Bits New Forging Water Drilling Rotary

Product Details

Formation Type:

Clay, Sand, Shale

Nozzle Type:

Fixed

Specification:

Matrix Or Steel Body

Market:

Global

Advantage:

Durable And High Efficiency

Cone Size:

Various Sizes Available

Iadc:

Based On Geology

Type:

TCI Or Steel Tooth

Bearing Type:

Journal Bearing

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

6 1/2 Inch IADC637 Steel Tooth Tricone Drill Bit for Fast Drilling in Soft Formations

Get Best Price

Video

6 3/4 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

Get Best Price

Video

5 1/2 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

Get Best Price

Video

244mm IADC737 Tungsten Carbide Insert Tricone Drill Bit for Efficient Oil and Gas Exploration

Get Best Price

Contact Now

Product Description

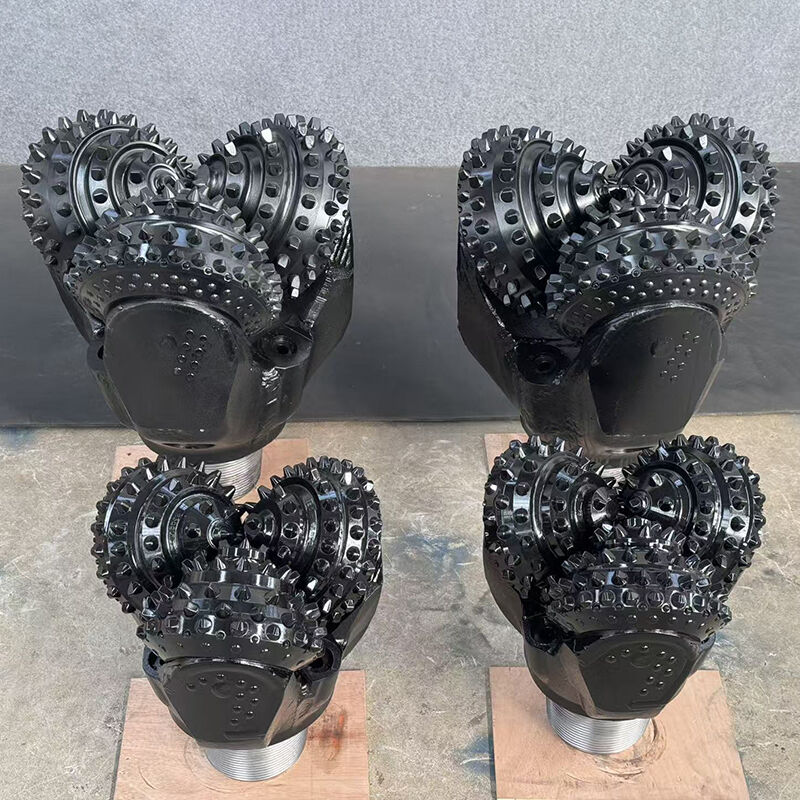

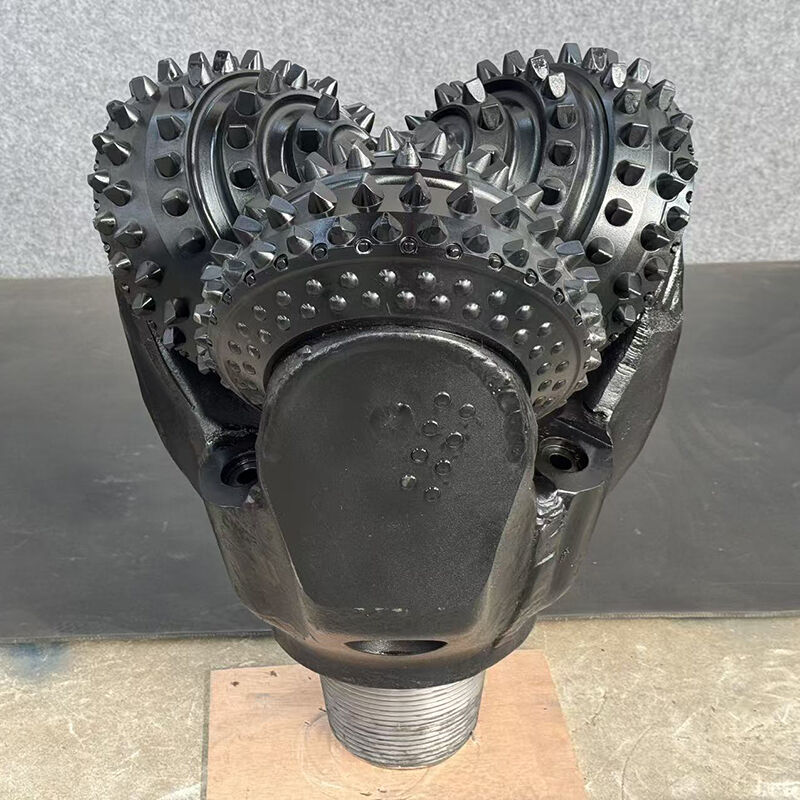

20 Inch Tci Tricone Bit,IADC535 Tricone Drill Bits New Forging Water Drilling Rotary

The three cone drill bit is a widely used core tool in petroleum drilling operations, and its performance directly affects drilling quality, efficiency, and cost. The drill bit structure consists of four main parts: the tooth palm body, the roller body, the bearing system, and the nozzle. According to the type of bearing, it can be divided into two categories: rolling bearings and sliding bearings, and according to the method of tooth fixation, it can be divided into two categories: hobbing and milling.

It crushes rocks through the impact crushing effect and sliding shear effect generated by the revolution and rotation of the roller cone, and is suitable for various soft, medium, and hard strata. The International Association of Drilling Contractors (IADC) has developed a three digit coding standard for classification and selection based on tooth type, formation adaptability, and structural characteristics

PRODUCT SPECIFICATIONS
product name	10 5/8 inch CA542 TCI tricone bit
size	10 5/8 inch,269.9mm
model number	CA535
series	CA
tooth type	TCI
connection	6 5/8" Reg PIN
bearing	Open bearing bit
Nozzle	three jet nozzles
application	Mining,water well,oil well,HDD,exploration,etc
weight	78kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	415	435	445	515,525	535,545	615,625	635,645	735,835
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40
