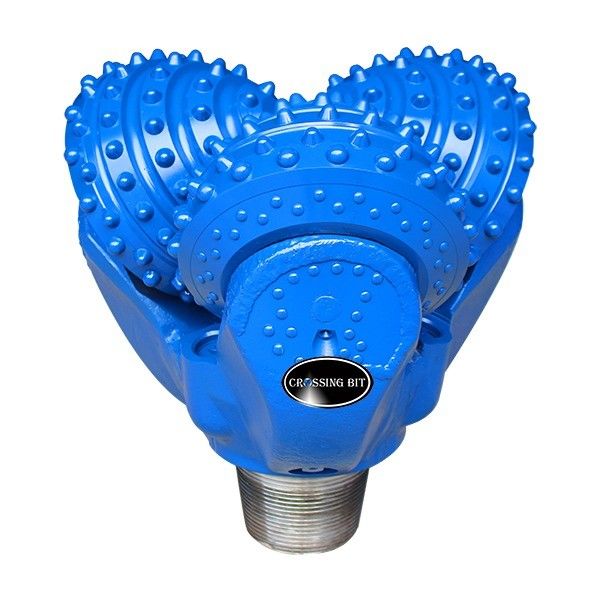

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

558.8mm Tri Cone Rock Bit

22 Inch Tri Cone Rock Bit

IADC 635 Tri Cone Rock Bit

Request A Quote

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Product Details

Package:

Wooden Box

Feature:

Wear Resistant

Formation Type:

Soft To Medium Hard

Sealed Type:

Rubber Sealed Bearing

Addtional:

Gauge Protection

Drilling Rate:

Fast

Type:

Water Circulation

Formation:

Soft

Seal:

Rubber Sealed

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

Three cone drill bits, as important tools in the fields of oil drilling and geological exploration, have won the favor of a large number of users due to their high efficiency, durability, and strong adaptability. This drill bit adopts advanced design concepts and manufacturing processes, combined with the actual needs of domestic and foreign drilling markets, and has become an important pillar of the oil drilling industry through continuous technological innovation and improvement.

PRODUCT SPECIFICATIONS
product name	22 inch CR635 TCI tricone bit
size	22 inch,558.8mm
model number	CR635
series	CR
tooth type	TCI/tungsten carbide insert
connection	7 5/8" API Reg
bearing	rubber sealed roller bearing
Nozzle	three jet nozzles and center jet
application	water well,oil well,HDD,exploration,etc
weight	640kg
certificate	API7-1,SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
For hard to very hard rock with high compressive strength and high abrasiveness,such as limestone,dolomite,sandstone and chert,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
