Name: 311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617
Brand: 311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617
SKU: 311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617
Rating: 4.7 (152 reviews)

Home > products > Tricone Drill Bit >

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

311mm Tricone Rock Roller Bits

IADC 617 Tricone Rock Roller Bits

12 1/4 Inch api 3 cones bit

Request A Quote

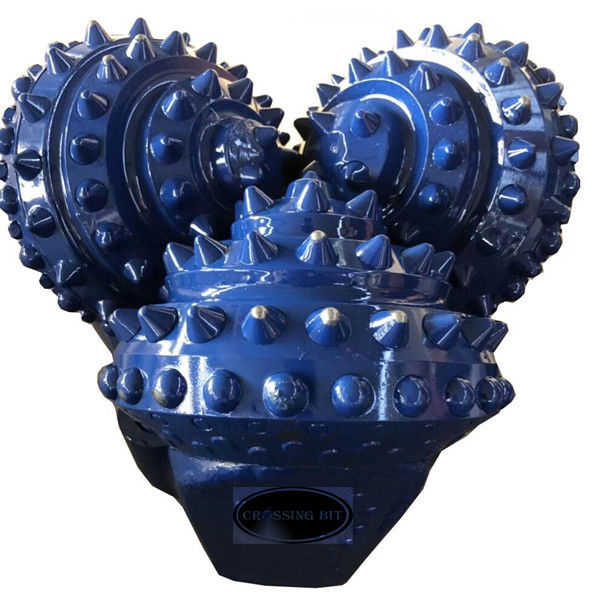

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Product Details

Sealed Type:

Rubber Sealed Bearing

Seal Type:

Metal Face Seal

Application:

Oil And Gas Drilling

Advantage:

High Performance

Teeth:

Insert Teeth

Thread Type:

Right Hand

Inserts Design:

Spherical; Ballistic; Parabolic

Seal:

Rubber Sealed

Usage:

Water, Oil, Gas Well Drilling

Payment & Shipping Terms

Price

Negotiable

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

Efficient drilling: The three cone drill bit adopts a unique cutting tooth design and arrangement, which can efficiently break the formation, improve drilling speed, and shorten the drilling cycle.

Strong durability: The drill bit is made of high-strength alloy steel material, which has undergone precise heat treatment and surface treatment processes, and has good wear resistance and impact resistance, greatly extending its service life.

Good adaptability: The three cone drill bit can adapt to different formation types and drilling conditions, and can maintain stable drilling effects in both soft and hard formations.

Easy to operate: The drill bit is designed reasonably, and installation and replacement are convenient and fast, reducing the difficulty of operation and labor intensity.

PRODUCT SPECIFICATIONS
product name	(12.25)12 1/4 inch CR617 TCI tricone bit
size	311mm
model number	CR617
series	CR
tooth type	TCI
connection	6 5/8" Reg PIN
bearing	rubber sealed journal bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	100kg
certificate	A7-1,SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite,sandstone and chert,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617 0

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
