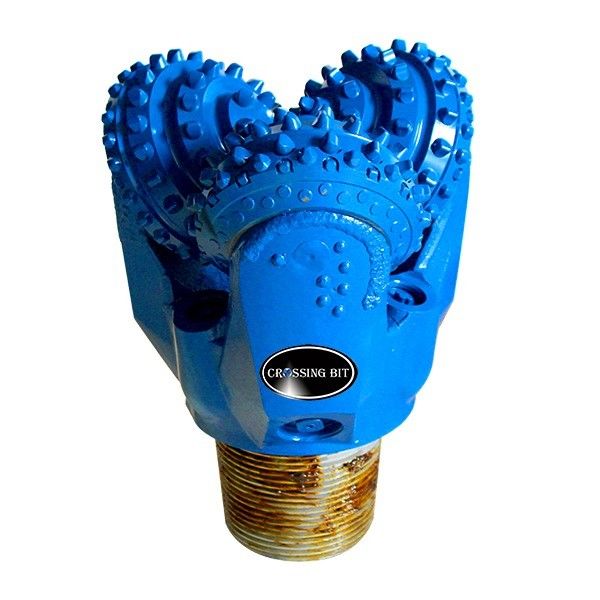

12.25 Inch Tungsten Carbide Insert Tri Cone Bit IADC537

Tungsten Carbide Tri Cone Bit

IADC537 Tri Cone Bit

12.25 Inch Tri Cone Bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

12.25 Inch Tungsten Carbide Insert Tri Cone Bit IADC537

Product Details

Packing:

Wooden Box

Material:

High Manganese Steel,Tungsten Carbide

Seal Type:

Rubber Sealed

Nozzle Qty:

4Nozzle

Diameter:

171/2

Sealed Type:

Rubber Sealed Bearing

Drilling Rate:

Fast

Bearing Type:

Journal Bearing

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

The working principle is mainly through the action of drilling pressure and drill string rotation, causing teeth to crush and eat into the rock, while generating a certain amount of sliding and shearing the rock. During the drilling process, the cone bit not only has an impact effect, but also has the function of crushing and shearing the rock in the formation, so it can adapt to various soft, medium, and hard formations.

PRODUCT SPECIFICATIONS
product name	12 1/4 inch CR537 TCI tricone bit
size	12 1/4 inch,311.1mm
model number	CR537
series	Brand: Crossing Type:CR
tooth type	TCI
connection	6 5/8" Reg pin
bearing	rubber sealed journal bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	101kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
