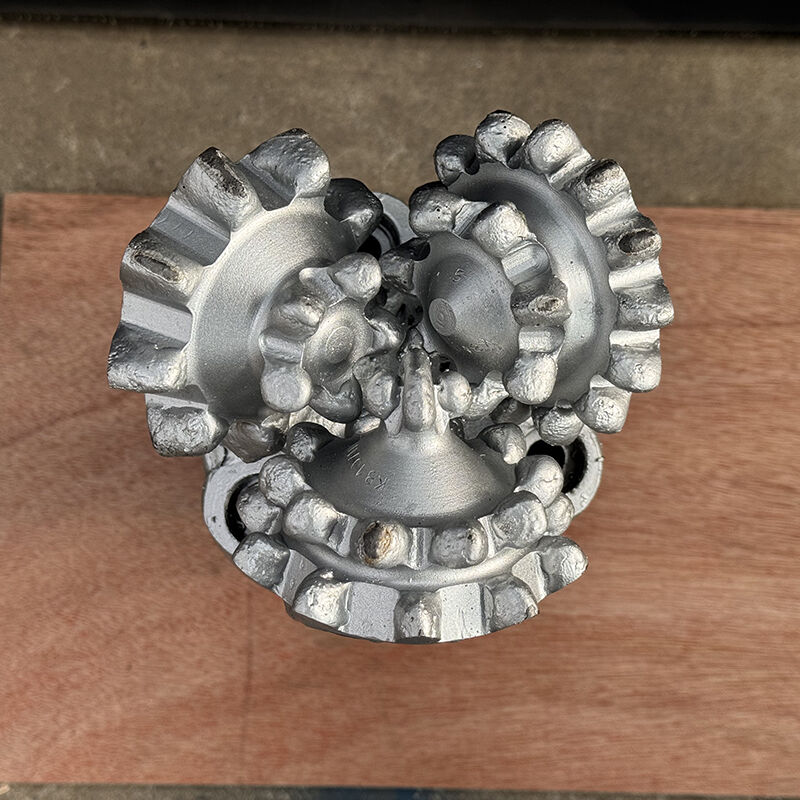

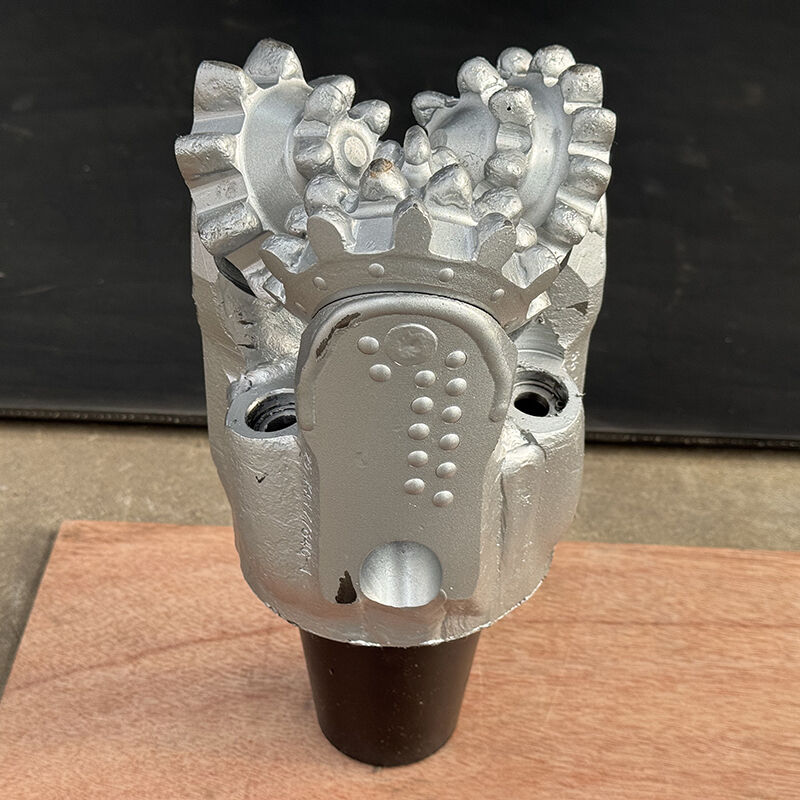

5 1/2 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

5 1/2 inch steel tooth drill bit

tricone drill bit with reg pin

2 7/8 thread tricone bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

Product Details

Drilling Rate:

Fast

Specification:

Matrix Or Steel Body

Teeth:

Milled Teeth

Bearing Type:

Journal Bearing

Material:

Tungsten Carbide Insert

Cutter Type:

Steel Tooth

Formation:

Soft

Bit Type:

Milled Tooth Bit

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

6 3/4 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

Get Best Price

Video

5 1/2 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

Get Best Price

Video

244mm IADC737 Tungsten Carbide Insert Tricone Drill Bit for Efficient Oil and Gas Exploration

Get Best Price

Video

9 7/8inch (250mm) IADC137 Fast Drilling Rate Mill Tooth Tricone Drill Bit for Soft Formation

Get Best Price

Contact Now

Product Description

PRODUCT INTRODUCE

The cutting structure of a three cone drill bit consists of three cones, each with teeth of different shapes and arrangements. According to the hardness and characteristics of the geological strata, teeth can be divided into two types: milling teeth (steel teeth) and inlaid teeth. Milling teeth are usually processed from high-strength alloy steel, and the tooth shape is mostly wedge-shaped or conical, suitable for medium hard formations.

During the drilling process, milling teeth break the rock through cutting action, which has the advantages of relatively low cost and maintaining a high mechanical drilling speed in medium hard formations. Inlaid teeth are hard alloy teeth embedded on the roller base. Hard alloy teeth have extremely high hardness and wear resistance, making them particularly suitable for use in hard formations such as granite, quartz sandstone, etc. The design of the inlaid teeth can effectively resist the grinding of rocks, extend the service life of the drill bit, and ensure stable and efficient operation under harsh geological conditions.

In addition, the surface of the roller cone is also equipped with retaining teeth to maintain the diameter of the borehole, prevent the aperture from shrinking during drilling, and ensure the quality and accuracy of the borehole.

PRODUCT SPECIFICATIONS
product name	17 1/2 inch CR737 TCI tricone bit
model number	CR737
tooth type	TCI
connection	7 5/8" Reg PIN
bearing	rubber sealed journal bearing or Metal sealed bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	250kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
hard formation with high compressive strength and high abrasiveness,such as limestone,dolomite,sandstone and chert,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

5 1/2 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling 0
