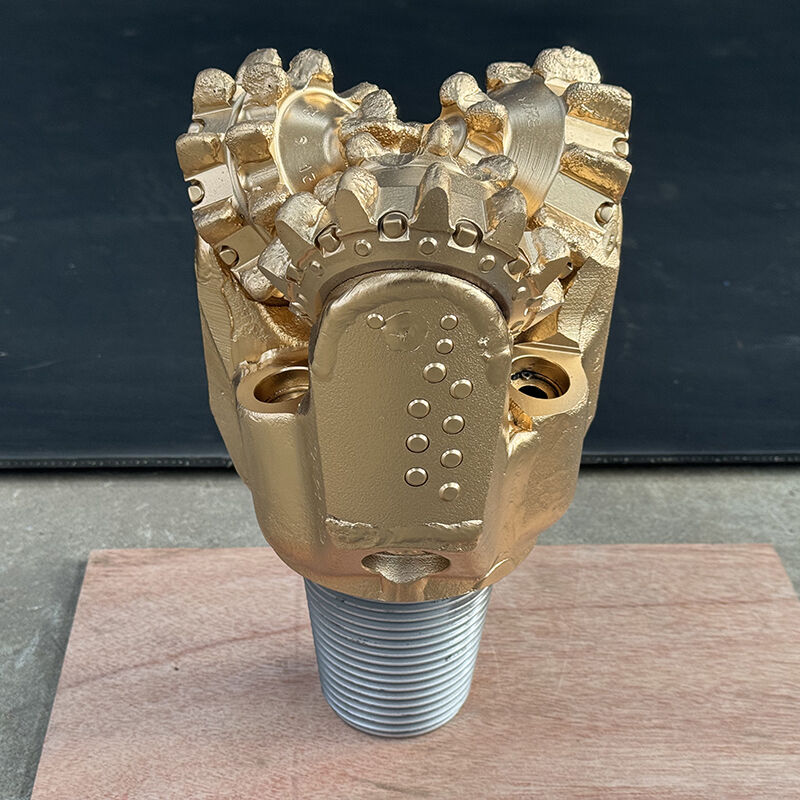

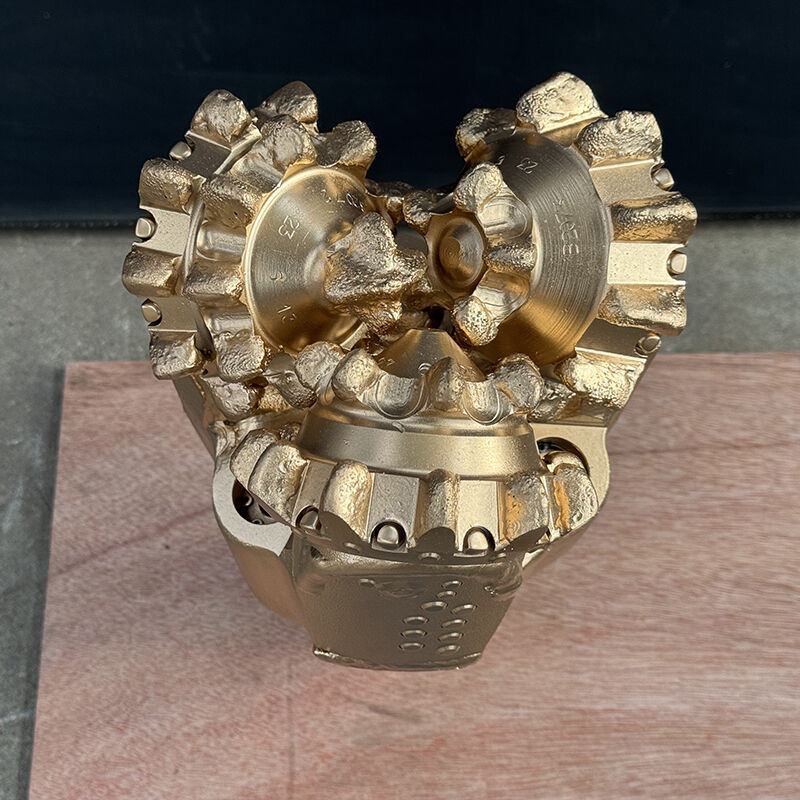

6 3/4 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

6 3/4 inch steel tooth bit

tricone drill bit with steel teeth

171mm steel tooth drill bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

Product Details

Drilling Rate:

Fast

Specification:

Matrix Or Steel Body

Connection Type:

API Reg

Bearing Type:

Journal Bearing

Material:

Tungsten Carbide Insert

Cutter Type:

Steel Tooth

Formation:

Soft

Bit Type:

Milled Tooth Bit

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

6 3/4 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

Get Best Price

Video

5 1/2 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

Get Best Price

Video

244mm IADC737 Tungsten Carbide Insert Tricone Drill Bit for Efficient Oil and Gas Exploration

Get Best Price

Video

9 7/8inch (250mm) IADC137 Fast Drilling Rate Mill Tooth Tricone Drill Bit for Soft Formation

Get Best Price

Contact Now

Product Description

PRODUCT INTRODUCE

The bearing structure is a key component of a three cone drill bit, which determines the rotational flexibility and service life of the cone. The common bearing structure is a combination of "roller bearings+ball bearings". Roller bearings mainly bear radial forces to ensure stable axial movement of the roller cone during rotation;

Ball bearings are responsible for bearing axial forces, ensuring that the roller cone can operate normally under drilling pressure. High end three cone drill bits usually use sealed bearing technology, which isolates the bearing chamber from external rock debris and mud through sealing elements such as rubber sealing rings. This sealing design can effectively prevent impurities from entering the interior of the bearing, reduce wear, and extend the bearing life by more than 50%. At the same time, the bearing chamber is filled with high-temperature lubricating grease, which usually has a temperature resistance of over 250 ℃. In harsh working environments with high temperature and high pressure, it can still provide good lubrication for the bearing, reduce frictional resistance, and ensure smooth rotation of the roller cone.

PRODUCT SPECIFICATIONS
product name	17 1/2 inch CR737 TCI tricone bit
size	17 1/2 inch,444.5mm
model number	CR737
series	CR
tooth type	TCI
connection	7 5/8" Reg PIN
weight	250kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
hard formation with high compressive strength and high abrasiveness,such as limestone,dolomite,sandstone and chert,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

6 3/4 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling 0

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
