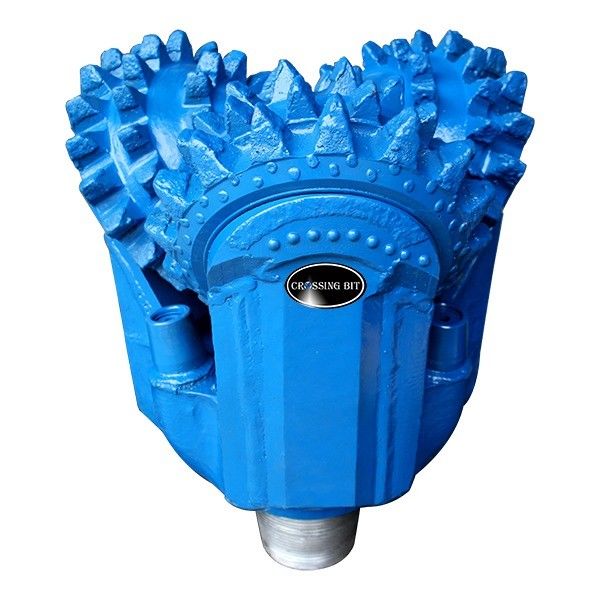

Name: 609.6mm 24 Inch Mill Tooth Tricone Bit Exploration Drilling
Brand: 609.6mm 24 Inch Mill Tooth Tricone Bit Exploration Drilling
SKU: 609.6mm 24 Inch Mill Tooth Tricone Bit Exploration Drilling
Rating: 4.7 (158 reviews)

Home > products > Tricone Drill Bit >

609.6mm 24 Inch Mill Tooth Tricone Bit Exploration Drilling

Exploration Drilling Tricone Bit

609.6mm Tricone Bit

24 Inch Tricone Bit

Request A Quote

609.6mm 24 Inch Mill Tooth Tricone Bit Exploration Drilling

Product Details

Material:

Tunsten Carbide

Package:

Wooden Case

Bearing Type:

Journal Bearing

Thread Connection:

4 1/2 API Reg Pin

Usage:

Water, Oil, Gas Well Drilling

Cutting Structure:

Steel Tooth

Color:

Golden

Gauge:

With Gauge Trimmer

Advantage:

High Performance

Payment & Shipping Terms

Price

Negotiable

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

Three cone drill bits are widely used in fields such as oil drilling, geological exploration, and water resource development, especially in deep wells, ultra deep wells, and complex formation drilling, where they can play their unique advantages.

Leading technology: The company has a first-class R&D team and advanced manufacturing equipment, which can ensure that the three cone drill bits always maintain a leading position in technology.

Excellent quality: A strict quality control system ensures that each drill bit meets high standards of quality requirements, providing reliable guarantees for users.

Thoughtful service: The company provides comprehensive pre-sales, in sales, and after-sales services, providing users with comprehensive technical support and solutions.

PRODUCT SPECIFICATIONS
product name	24 inch CR217 mill tooth tricone bit
size	24 inch,609.6mm
model number	CR115
series	CR
tooth type	mill tooth
connection	7 5/8" Reg PIN
bearing	elastomer rubber sealed journal bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	720kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATIONS
medium hard with relatively higher compressive strength and hard stringers,such as hard shale,sandstone and limestone,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	116,117,115	126,127	136,137	216,217	317	337
WOB(KN/mm)	0.35~0.90	0.35~1.00	0.35~1.05	0.35~1.2	0.7~1.30	0.80~1.40
RPM(r/min)	150~80	150~70	120~60	90~50	80~45	75~45
