Name: 444.5mm 17 1/2 Inch Tci Tricone Drill Bits In Soft Formation
Brand: 444.5mm 17 1/2 Inch Tci Tricone Drill Bits In Soft Formation
SKU: 444.5mm 17 1/2 Inch Tci Tricone Drill Bits In Soft Formation
Rating: 4.8 (142 reviews)

Home > products > Tricone Drill Bit >

444.5mm 17 1/2 Inch Tci Tricone Drill Bits In Soft Formation

444.5mm Tricone Drill Bits

Soft Formation Tricone Drill Bits

17 1/2 Inch tci tricone drill bits

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

444.5mm 17 1/2 Inch Tci Tricone Drill Bits In Soft Formation

Product Details

Drilling Rate:

Fast

Bearing Sealing:

Metal Or Rubber

Specification:

Matrix Or Steel Body

Teeth:

Milled Teeth

Connection Type:

API Reg

Bearing Type:

Journal Bearing

Material:

Tungsten Carbide Insert

Cutter Type:

Steel Tooth

Formation:

Soft

Bit Type:

Milled Tooth Bit

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

The shearing effect of teeth itself is also an important cutting method that cannot be ignored. Under the action of drilling pressure and drill string rotation, teeth can crush and feed into the rock, while producing a certain amount of sliding, further shearing the rock. This shear action can remove the remaining rock between the teeth, causing the rock at the bottom of the well to break completely and extend the wellbore. The cutting method of a three cone drill bit is a composite process that combines impact crushing, sliding shear, and the shear effect of the teeth themselves, allowing the drill bit to adapt to various formation types and achieve efficient and stable drilling.

PRODUCT SPECIFICATIONS

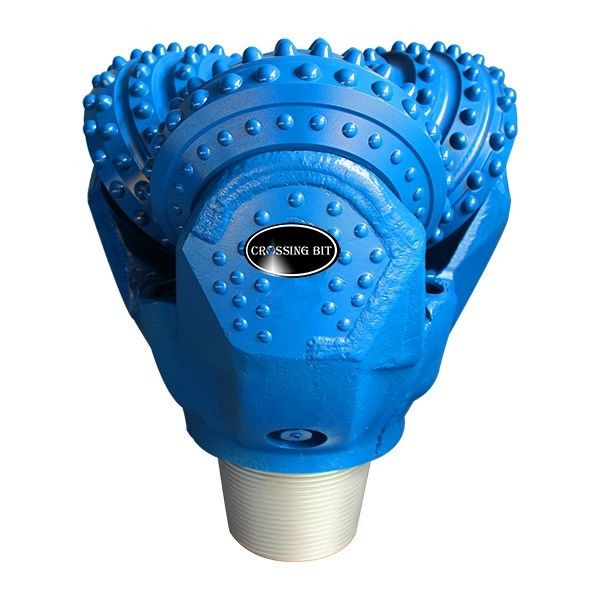

product name	17 1/2 inch CR737 TCI tricone bit
size	17 1/2 inch,444.5mm
model number	CR737
series	CR
tooth type	TCI
connection	7 5/8" Reg PIN
bearing	rubber sealed journal bearing or Metal sealed bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	250kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
hard formation with high compressive strength and high abrasiveness,such as limestone,dolomite,sandstone and chert,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
