Name: 17.5 Inch 444.5mm Steel Tooth Tricone Drill Bit 100 RPM -300 RPM
Brand: 17.5 Inch 444.5mm Steel Tooth Tricone Drill Bit 100 RPM -300 RPM
SKU: 17.5 Inch 444.5mm Steel Tooth Tricone Drill Bit 100 RPM -300 RPM
Rating: 4.7 (139 reviews)

Home > products > Tricone Drill Bit >

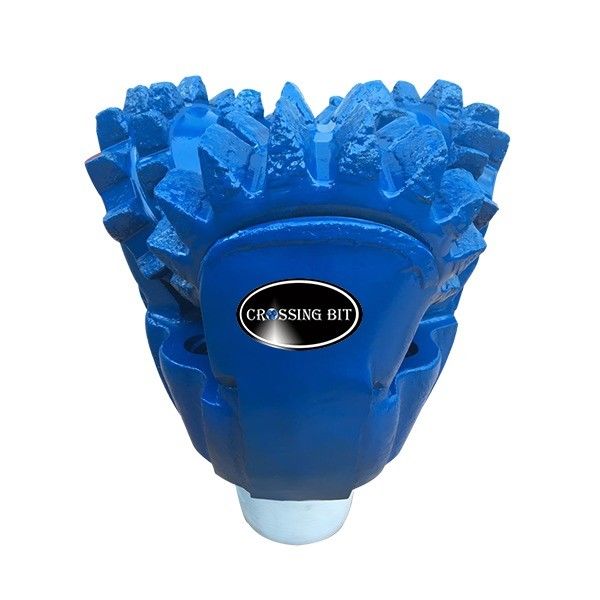

17.5 Inch 444.5mm Steel Tooth Tricone Drill Bit 100 RPM -300 RPM

444.5mm Tricone Drill Bit

17.5 Inch Tricone Drill Bit

100 RPM Tricone Drill Bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

17.5 Inch 444.5mm Steel Tooth Tricone Drill Bit 100 RPM -300 RPM

Product Details

Packing:

Wooden Box

Rotation Speed:

100-300 RPM

Market:

Global

Usage:

Water, Oil, Gas Well Drilling

Package:

Wooden Box

Application Formation:

Hard Rock Formation

Nozzle Qty:

3Nozzle

Teeth Type:

Insert Button Or Milled Tooth,saw Tooth

Formation:

Hard

Inserts Design:

Spherical; Ballistic; Parabolic

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

The working principle of a three cone drill bit is mainly based on its unique cutting structure and mechanical principles. During the drilling process, the three cone drill bit transmits rotational force and drilling pressure through the drill pipe, achieving efficient fracturing of the formation.

Firstly, the three cones of the drill bit rotate around the bottom of the hole, while each cone rotates around its own axis. This composite motion allows the cutting teeth on the teeth to fully contact the rock formations, generating strong cutting forces.

Secondly, when the tooth wheel rolls at the bottom of the well, the cutting teeth on it sequentially impact and press into the formation. During this process, the cutting teeth crush and shear the formation rocks into small pieces. This crushing effect mainly depends on factors such as the shape, arrangement, and material hardness of the cutting teeth.

In addition, drilling fluid plays a crucial role in the drilling process. Drilling fluid is injected through the drill pipe to lubricate and cool the drill bit, while carrying debris out of the bottom of the hole. This not only helps to maintain the good working condition of the drill bit, but also improves drilling efficiency.

PRODUCT SPECIFICATIONS for ST BIT
product name	17 1/2 inch CR114 mill tooth tricone bit
size	17 1/2 inch,444.5mm
model number	CR114
series	CR
tooth type	mill tooth
connection	7 5/8" API Reg
bearing	rubber sealed roller bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	250kg
certificate	API7-1,SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATIONS
very soft with low compressive strength and high drillability,such as soft shale,clay and salt bed,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	116,117	126,127	136,137	216,217	317	337
WOB(KN/mm)	0.35~0.90	0.35~1.00	0.35~1.05	0.35~1.2	0.7~1.30	0.80~1.40
RPM(r/min)	150~80	150~70	120~60	90~50	80~45	75~45

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
