14 3/4 Inch TCI Rock Tricone Drill Bit IADC CODE 517

IADC CODE 517 Tricone Drill Bit

Rock Tricone Drill Bit

14 3/4 Inch tricone rock bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

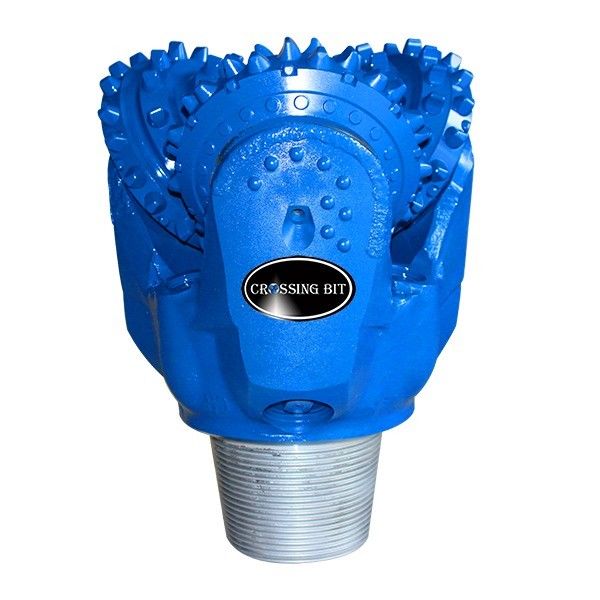

14 3/4 Inch TCI Rock Tricone Drill Bit IADC CODE 517

Product Details

Application:

Soft To Hard Formation Drilling

Sealed:

Rubber / Metal Sealed

Formation Type:

Clay, Sand, Shale, Limestone, Etc.

Materials:

Tungsten Carbide Insert Tooth

Seal:

Rubber Sealed

Processing Type:

Forging

Packagig:

Wooden Case

Connection Type:

API Reg Or Pin

Material:

Tungsten Carbide Insert

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

Through the action of drilling pressure and drill string rotation, the teeth are crushed and fed into the rock, while generating a certain amount of sliding and shearing the rock. During the drilling process, the cone bit not only has an impact effect, but also has the function of crushing and shearing the rock in the formation, so it can adapt to various soft, medium, and hard formations.

In addition, three cone drill bits are also commonly used in home decoration design to drill materials with various hardness, such as wood, metal, and plastic. Its unique design makes the drilling process more stable, reduces shaking and shaking, and improves the accuracy of the work.

PRODUCT SPECIFICATIONS
product name	14 3/4 inch CR517 TCI tricone bit
size	14 3/4 inch,374.6mm
model number	CR517
series	CR
tooth type	TCI
connection	7 5/8" Reg pin
bearing	rubber sealed journal bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	160kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
soft with low compressive strength and high drillability,such as shale,clay,sandstone and soft limestone,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
