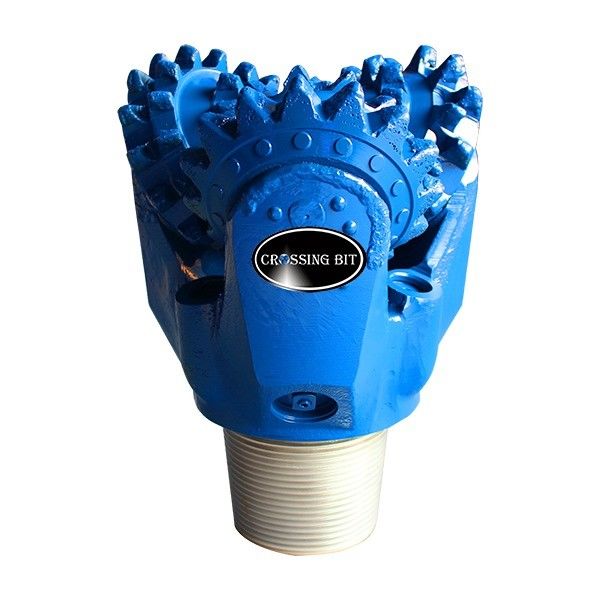

Name: 311.1mm 12 1/4 Inch Steel Tooth Tricone Bit For Water Well
Brand: 311.1mm 12 1/4 Inch Steel Tooth Tricone Bit For Water Well
SKU: 311.1mm 12 1/4 Inch Steel Tooth Tricone Bit For Water Well
Rating: 4.6 (106 reviews)

Home > products > Tricone Drill Bit >

311.1mm 12 1/4 Inch Steel Tooth Tricone Bit For Water Well

Water Well Tricone Bit

12 1/4 Inch Tricone Bit

311.1mm Tricone Bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

311.1mm 12 1/4 Inch Steel Tooth Tricone Bit For Water Well

Product Details

Sealed Type:

Rubber Sealed Bearing

Feature:

Wear Resistant

Seal:

Rubber Sealed

Bearing Type:

Journal Bearing

Cutting Structure:

Steel Tooth

Processing Type:

Forging

Seal Type:

Rubber Sealed

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

Triple cone drill bit is a drilling tool widely used in fields such as petroleum drilling and geological drilling. Its unique design, powerful function, and ability to adapt to various geological conditions have excellent drilling capabilities.

Firstly, the design of the three cone drill bit is very unique. It is mainly composed of teeth, bearings, teeth, water holes and other parts, among which the teeth are the core component of the drill bit, with three or more cutting teeth. This design allows the drill bit to generate sufficient impact and shear forces when rotating, effectively breaking and drilling rocks.

Secondly, the three cone drill bit can adapt to various geological conditions. Whether in soft or hard formations, the three cone drill bit can achieve efficient and stable drilling operations by adjusting the drilling pressure and speed. In addition, it can flexibly adjust the cutting structure of the drill bit according to changes in the formation to adapt to different geological characteristics.

PRODUCT SPECIFICATIONS
product name	12 1/4 inch CR217 Mill tooth tricone bit
size	12 1/4 inch,311.1mm
model number	CR217
series	CR
tooth type	mill tooth
connection	6 5/8" Reg PIN
bearing	rubber sealed journal bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	101kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATIONS
medium hard with relatively higher compressive strength and hard stringers,such as hard shale,sandstone and limestone,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	116,117	126,127	136,137	216,217	317	337
WOB(KN/mm)	0.35~0.90	0.35~1.00	0.35~1.05	0.35~1.2	0.7~1.30	0.80~1.40
RPM(r/min)	150~80	150~70	120~60	90~50	80~45	75~45

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
