Product Description

Three cone drill bits have high drilling accuracy and stability. Its structural design is reasonable, and the distribution of cutting teeth is uniform, allowing for precise control of the diameter and shape of the wellbore during the drilling process. At the same time, the drill bit has good wear resistance and high temperature resistance, which can maintain stable performance under long-term and high load working conditions, ensuring the accuracy and reliability of exploration data.

PRODUCT SPECIFICATIONS

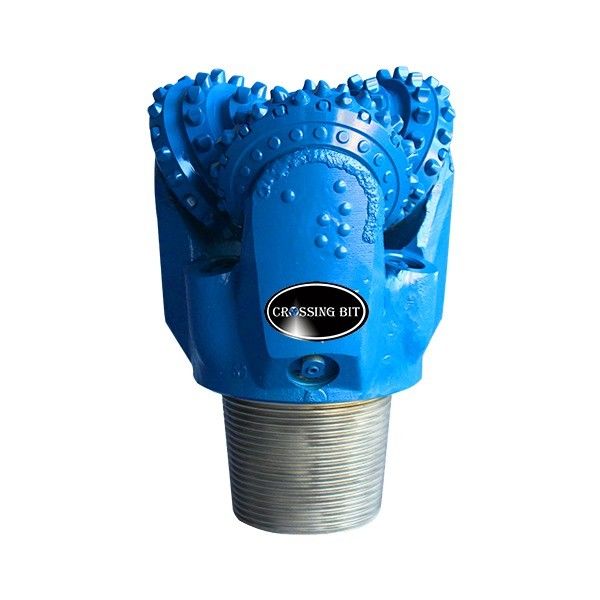

product name	9 1/2 inch CR537 TCI tricone bit
size	9 1/2inch,241.3mm
model number	CR537
series	CR
tooth type	TCI
connection	6 5/8" Reg pin
bearing	rubber sealed journal bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	63kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40
