Steel Teeth Api Three Cones Bit Rubber Or Metal Seal

Steel teeth api three cones bit

Metal Seal api three cones bit

Rubber Seal bit tricone

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

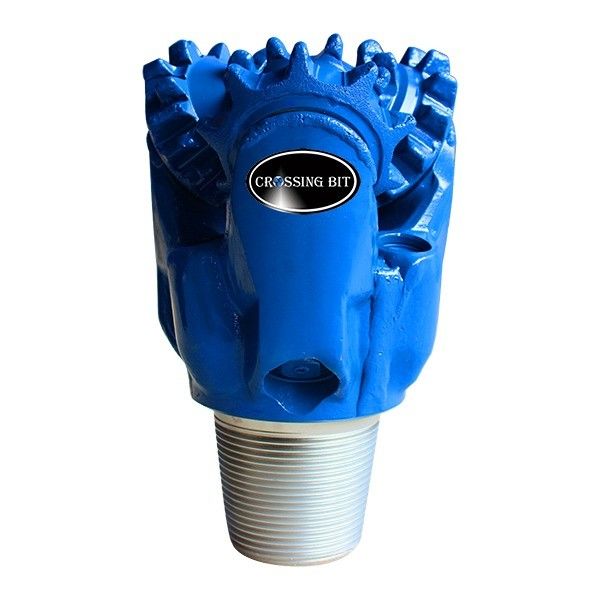

Steel Teeth Api Three Cones Bit Rubber Or Metal Seal

Product Details

Packagig:

Wooden Case

Seal Type:

Rubber Or Metal

Advantage:

High Performance

Teeth:

Steel Teeth

Gauge Protection:

TCI Or Milled Tooth

Thread Protector:

Available

Formation Type:

Soft, Medium, Hard, Etc.

Application:

Oil And Gas Drilling

Processing Type:

Forging

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

The main working principle of a three cone drill bit is to use the rotation of the drill pipe and pressure to cut and break the formation with three teeth, forming a wellbore. During the drilling process, friction and heat are generated between the drill bit and the wellbore, while the three cone drill bit can lower the temperature by circulating coolant, thereby protecting the drill bit and cutting teeth. This design allows the three cone drill bit to adapt to various formations, whether it is soft or hard, and can effectively carry out drilling operations.

PRODUCT SPECIFICATIONS
product name	8 1/2 inch CR114 steel tooth tricone bit
size	8 1/2 inch,215.9mm
model number	CR331
series	CR
tooth type	steel tooth
connection	4 1/2" Reg PIN
bearing	rubber sealed roller bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	45kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATIONS
very soft with low compressive strength and high drillability,such as soft shale,clay and sale bed,etc
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	116,117	126,127	136,137	216,217	317	337,331
WOB(KN/mm)	0.35~0.90	0.35~1.00	0.35~1.05	0.35~1.2	0.7~1.30	0.80~1.40
RPM(r/min)	150~80	150~70	120~60	90~50	80~45	75~45

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
