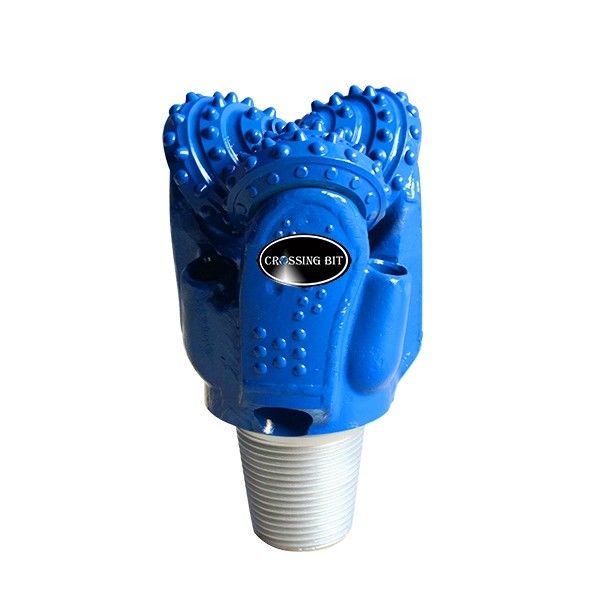

Steel Teeth 6.5 Inch Tricone Drill Bit For Oil Well Drilling

Steel Teeth 6.5 Inch Tricone Drill Bit For Oil Well Drilling

6.5 inch tricone drill bit

oil well drilling tricone drill bit

6.5 inch steel tooth tricone bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Contact Us
Request A Quote
Product Details
Bit Type:
Roller Cone Bit
Advantage:
High Performance
Application Formationq:
Medium Hard Rock Formation
Teeth:
Steel Teeth
Package:
Wooden Box
Formation:
Hard
Thread Type:
Right Hand
Seal Type:
Rubber Sealed
Payment & Shipping Terms
Price
Negotiable
Delivery Time
5-15work days
Payment Terms
T/T
Supply Ability
50000PCS/Month
Product Description



The three cone drill bit also adopts high-precision metal sealing, ensuring that drilling fluid does not enter the lubrication system, thereby ensuring the normal operation of the drill bit. At the same time, it is equipped with a full rubber oil reservoir that can limit the pressure difference and prevent drilling fluid from entering the lubrication system. This reservoir can withstand high temperatures, resist wear, and improve the durability of the drill bit.







Company Profile


Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.



Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.



Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.



This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.





PRODUCT SPECIFICATIONS

product name

6 1/2 inch CR747 TCI tricone bit

size

6 1/2 inch,165.1mm

model number

CR747

series

CR

tooth type

TCI

connection

3 1/2"  Reg pin

bearing

rubber sealed journal bearing

Nozzle

three jet nozzles

application

water well,oil well,HDD,exploration,etc

weight

22kg

certificate

SY/T5164,ISO9001:2008

RECOMMENDED ROCK FORMATION

hard formation with high abrasiveness,such as hard limestone,dolomite,hard sandstone and chert,etc.

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Type&IADC code

417

437

447

517,527

537,547

617,627

637,647

737,837

WOB(KN/mm)

0.35~0.90

0.35~0.95

0.35~1.00

0.35~1.05

0.35~1.05

0.35~1.05

0.70~1.20

0.70~1.20

RPM(r/min)

140~70

140~60

140~60

120~50

110~40

80~40

70~40

70~40
