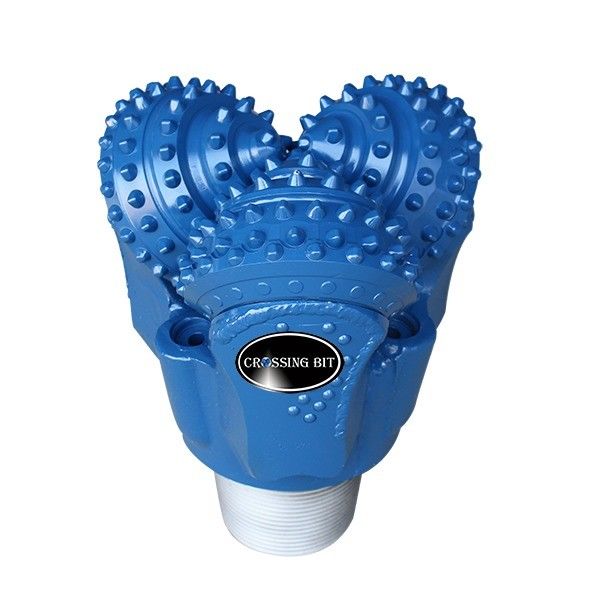

Exploration Forging TCI Tooth Tricone Drill Bit IADC 617

Exploration tricone drill bit

Forging tricone drill bit

IADC 617 tci tricone bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

Exploration Forging TCI Tooth Tricone Drill Bit IADC 617

Product Details

Processing Type:

Forging

Formation:

Midium Hard

Type:

Matrix Or Steel

Bit Type:

Roller Cone Bit

Connection Type:

API

Feature:

Wear Resistant

Sealed Type:

Rubber Sealed Bearing

Seal Type:

Metal Face Seal Or Rubber O-Ring

Teeth:

Steel Teeth

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

244.5mm Mining Rock Mill Tooth Drill Bit 9 5/8 Inch

Get Best Price

Size 558.8mm 22 Inch Tri Cone Rock Bit IADC 635

Get Best Price

311mm 12 1/4 Inch Tricone Rock Roller Bits IADC 617

Get Best Price

Advanced 660.4mm 26 Inch Tricone Drill Bits For HDD

Get Best Price

Contact Now

Product Description

In the field of oil drilling, three cone drill bits are indispensable and important tools. It can efficiently drill into various hardness formations, including soft rock layers, shale layers, etc., and is suitable for drilling different types of wells such as oil and gas wells and water wells. In the process of oil drilling, the three cone drill bit can not only control the wellhead pressure, but also improve the drilling speed, providing strong support for oil extraction.

PRODUCT SPECIFICATIONS
product name	12 1/4 CJ617 TCI tricone bit
size	12 1/4 inch,311.1mm
model number	CJ617
series	CJ
tooth type	TCI
connection	6 5/8" Reg PIN
bearing	metal sealed journal bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
weight	101kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium hard with high compressive strength and thick&hard stringers,such as limestone,hard shale,mudstone and sandstone,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617	627	637	737
WOB(KN/mm)	0.35~0.90	0.35~0.90	0.35~1.00	0.35~1.05	0.50~1.05	0.50~1.05	0.50~1.05	0.50~1.10	0.50~1.20
RPM(r/min)	280~70	280~60	240~60	240~50	220~40	220~40	200~40	200~40	200~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
