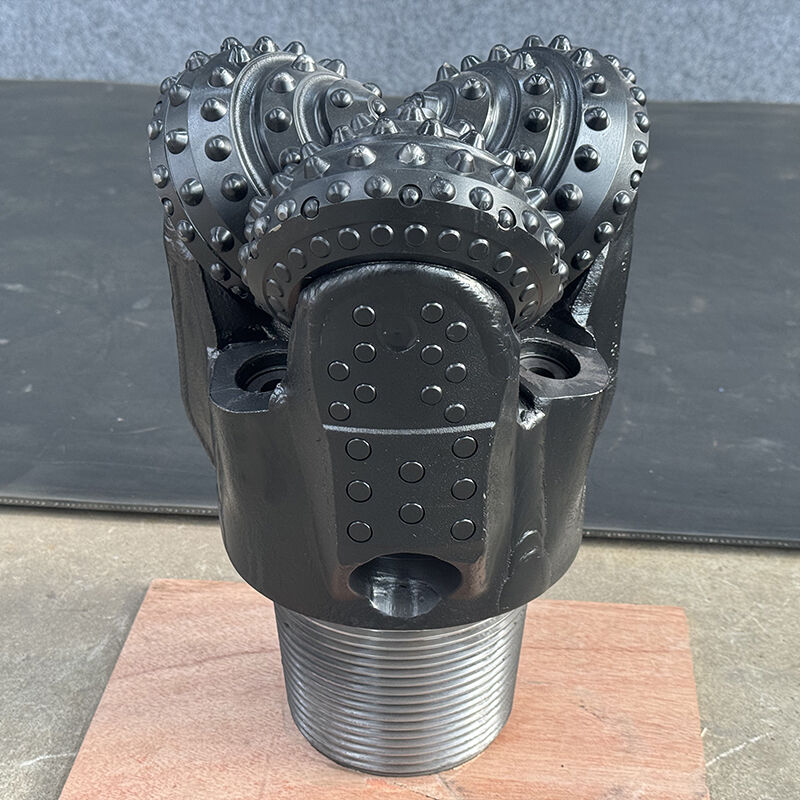

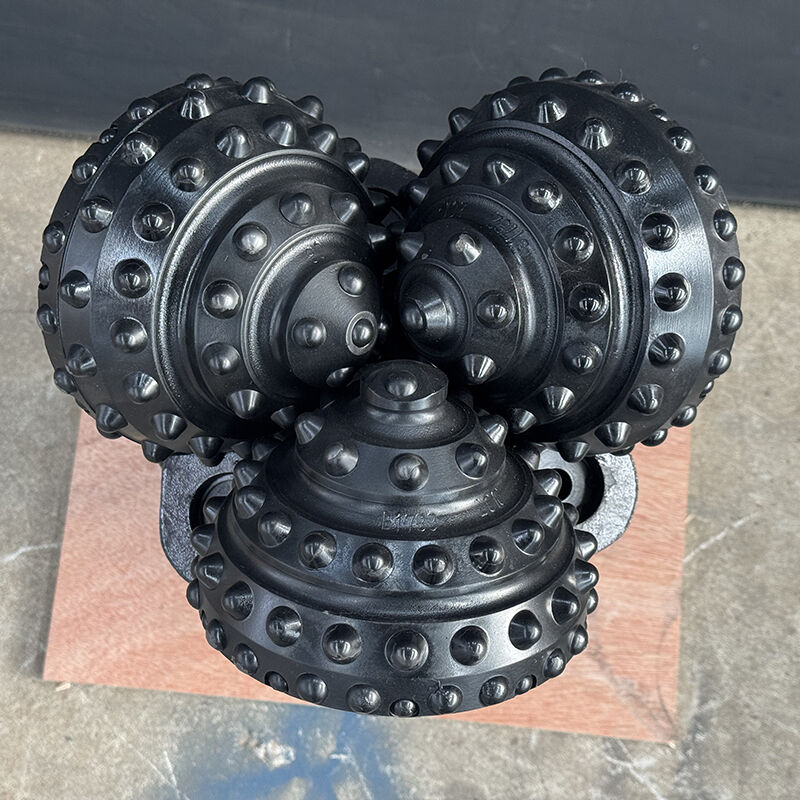

244mm IADC737 Tungsten Carbide Insert Tricone Drill Bit for Efficient Oil and Gas Exploration

244mm TCI tricone drill bit

IADC737 tricone drill bit

TCI tricone bit with warranty

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

Product Details

Specification:

Matrix Or Steel Body

Teeth:

Milled Teeth

Connection Type:

API Reg

Bearing Type:

Journal Bearing

Material:

Tungsten Carbide Insert

Cutter Type:

Steel Tooth

Formation:

Soft

Bit Type:

Milled Tooth Bit

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

6 3/4 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

Get Best Price

Video

5 1/2 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling

Get Best Price

Video

244mm IADC737 Tungsten Carbide Insert Tricone Drill Bit for Efficient Oil and Gas Exploration

Get Best Price

Video

9 7/8inch (250mm) IADC137 Fast Drilling Rate Mill Tooth Tricone Drill Bit for Soft Formation

Get Best Price

Contact Now

Product Description

PRODUCT INTRODUCE

In the modern drilling industry, the three cone drill bit has become an indispensable key tool in many fields such as oil and gas exploration, water well drilling, geological drilling, and engineering pile foundation due to its excellent performance and wide applicability. Its unique design and working principle enable it to demonstrate efficient rock breaking capabilities under different geological conditions, providing a solid guarantee for the smooth implementation of various drilling operations.

The three cone drill bit, with its "impact+cutting" composite rock breaking method, achieves efficient drilling in various formations. Its toothed design can withstand high temperatures of up to 600 ℃, and the bearing life is extended by more than 50%. It is widely used in oil exploration, water well drilling and other scenarios, and has become a core equipment in the modern drilling industry.

PRODUCT SPECIFICATIONS
product name	17 1/2 inch CR737 TCI tricone bit
size	17 1/2 inch,444.5mm
model number	CR737
series	CR
connection	7 5/8" Reg PIN
bearing	rubber sealed journal bearing or Metal sealed bearing
Nozzle	three jet nozzles
application	water well,oil well,HDD,exploration,etc
RECOMMENDED ROCK FORMATION
hard formation with high compressive strength and high abrasiveness,such as limestone,dolomite,sandstone and chert,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	417	437	447	517,527	537,547	617,627	637,647	737,837
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

244mm IADC737 Tungsten Carbide Insert Tricone Drill Bit for Efficient Oil and Gas Exploration 0

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
