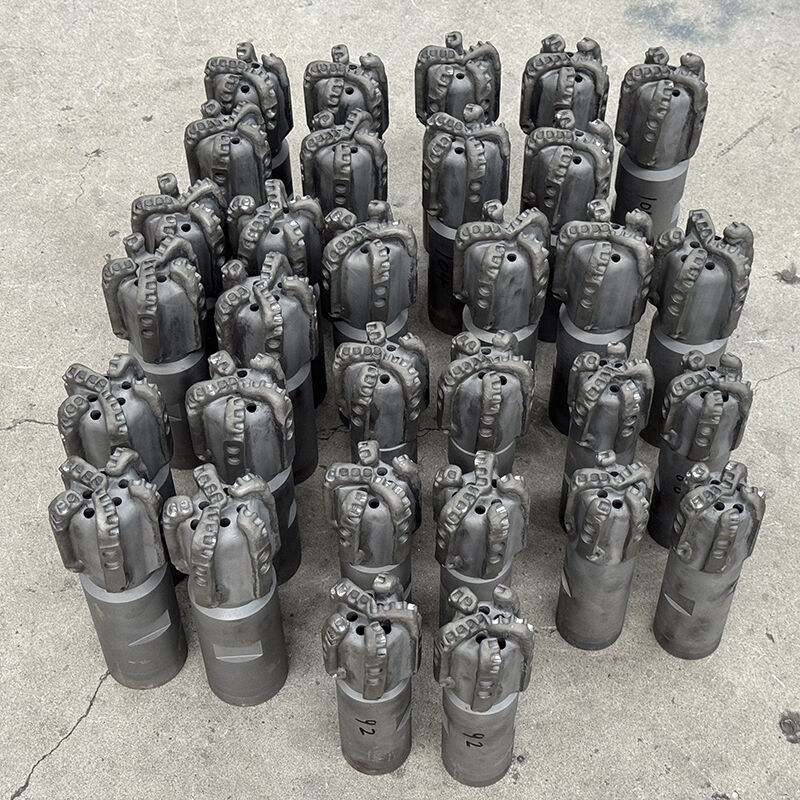

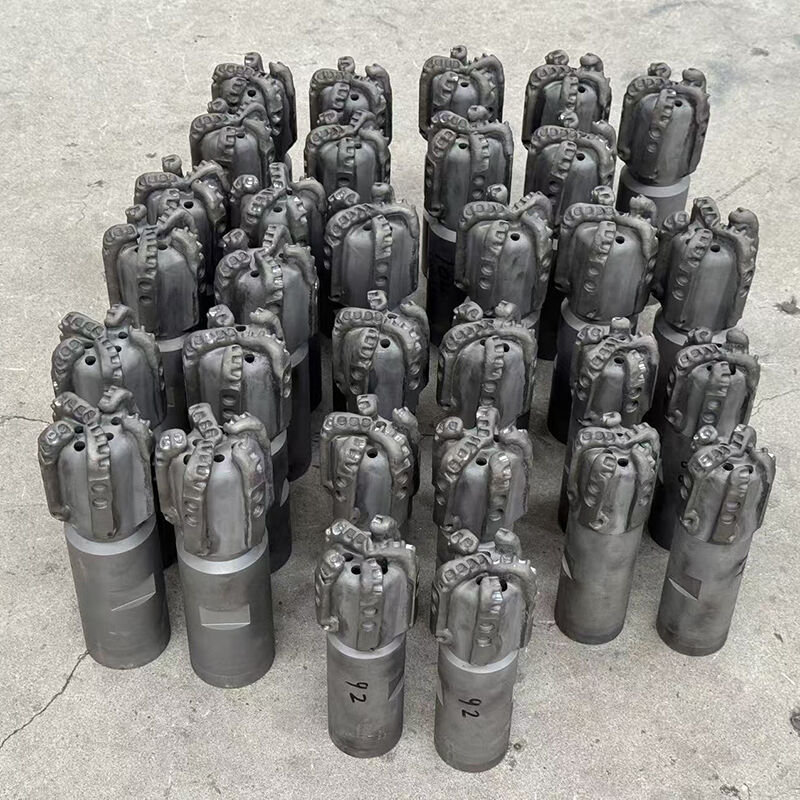

5 1/2 Inch Matrix Body PDC Drill Bit for Soft to Hard Formation in Petroleum and Water Well Drilling

5 1/2 inch PDC Bit

Matrix Body PDC Drill Bit

Soft to Hard Formation Diamond PDC Bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

5 1/2 Inch Matrix Body PDC Drill Bit for Soft to Hard Formation in Petroleum and Water Well Drilling

Product Details

Product Name:

PDC Bits

Formation:

Soft To Hard

Material:

Carbide Steel

Body Material:

Matrix

Connection:

API

Origin:

China

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

5 1/2 Inch Matrix Body PDC Bit for Soft to Hard Formation Oil and Water Wells

Get Best Price

5 1/2 Inch Matrix Body PDC Drill Bit for Soft to Hard Formation in Petroleum and Water Well Drilling

Get Best Price

High Performance 5 Blades Steel Body PDC Drill Bit for Soft To Hard Formation Oil Well Drilling

Get Best Price

12 1/4" 311.1mm PDC Diamond Bit 5 Blades

Get Best Price

Contact Now

Product Description

Diamond PDC Square Core Barrel Drill Bit With Holders Drilling Tool For Petroleum Exploration & Water Well Drilling‌‌

Polycrystalline Diamond Compact (PDC) drill bits have revolutionized the drilling industry with their excellent cutting efficiency and durability. PDC drill bits originated in the 1970s and have evolved into key tools for oil and gas exploration, geothermal drilling, and mining operations. Their ability to drill various formations in various wear and tear makes them essential in modern drilling applications.

The development of PDC drill bit technology is driven by more efficient drilling methods to obtain deeper and harder rock formations. A PDC drill bit is composed of a solid object embedded in a synthetic diamond cutting machine. The cutting machine is made by sintering diamond particles under high pressure and temperature, thereby forming a compact material with diamond hardness and toughness of tungsten carbide. Drill bits can be constructed from matrix or steel structures, and each drill bit has significant advantages under different drilling conditions.

PRODUCT SPECIFICATIONS
product name	5 1/2 inch CM1305 matrix body PDC bit
size	5 1/2 inch,139.7mm
model number	CM1305
series	CM
body type	matrix body
primary cutter size	13mm
number of nozzle	5
number of blade	5
Make Up Torque(KN.m)	10.4~11.4
application	water well,oil well,HDD,exploration,etc
weight	23kg
certificate	SY/T5164,ISO9001:2008
ROCOMMENDED ROCK FORMATION
soft to medium formation with lower compressive strength and good drillability,such as marl,shale,lignite,sandstone,anhydrite,tuff ,etc.
RECOMMENDED OPERATING PARAMETERS
Rotary Speed(RPM)	60~250
Weight On Bit(WOB)	5~45
Max.WOB(KN)	80
Flow Rate(lps)	10~25

5 1/2 Inch Matrix Body PDC Drill Bit for Soft to Hard Formation in Petroleum and Water Well Drilling

Company Profile

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
