Home > Products > PDC Bit >

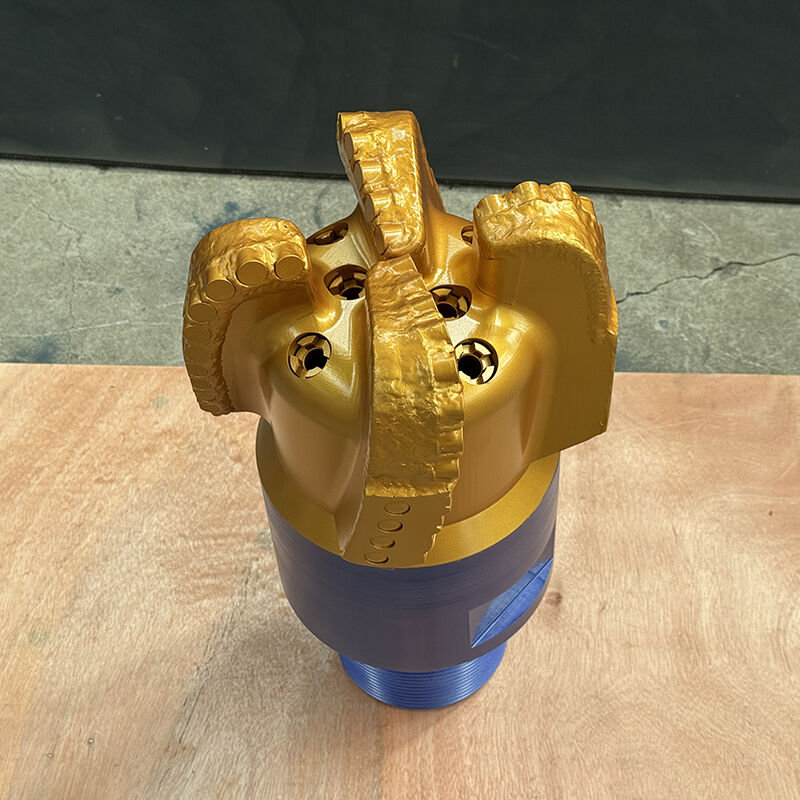

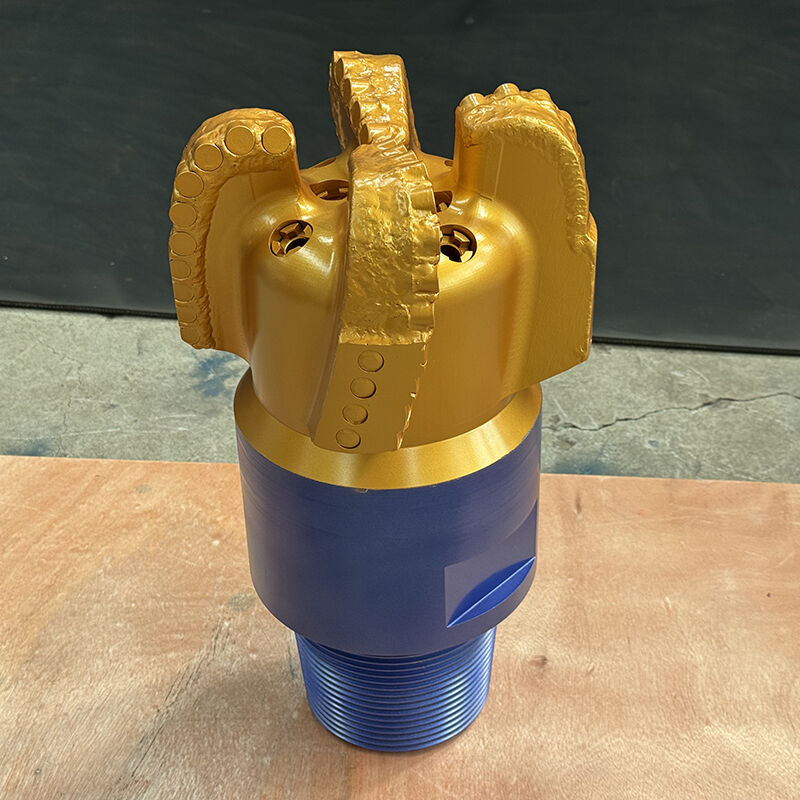

5 1/2 Inch Matrix Body PDC Bit for Soft to Hard Formation Oil and Water Wells

Matrix Body PDC Bit

5 1/2 Inch PDC Drill Bit

Soft to Hard Formation Polycrystalline Diamond Compact Bit

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

5 1/2 Inch Matrix Body PDC Bit for Soft to Hard Formation Oil and Water Wells

Product Details

Product Name:

PDC Bits

Formation:

Soft To Hard

Material:

Carbide Steel

Body Material:

Matrix

Connection:

API

Origin:

China

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

5 1/2 Inch Matrix Body PDC Bit for Soft to Hard Formation Oil and Water Wells

Get Best Price

5 1/2 Inch Matrix Body PDC Drill Bit for Soft to Hard Formation in Petroleum and Water Well Drilling

Get Best Price

High Performance 5 Blades Steel Body PDC Drill Bit for Soft To Hard Formation Oil Well Drilling

Get Best Price

12 1/4" 311.1mm PDC Diamond Bit 5 Blades

Get Best Price

Contact Now

Product Description

PDC Bit For Oil Wells And Water Wells The Manufacturer Produces High-Quality Drill Bits.

The matrix position is made of a composite material of tungsten carbide particles suspended in a metal binder, which has excellent corrosiveness and is suitable for drilling in abrasive formations. On the other hand, steel drill bits can provide greater ductility and impact resistance, making them very suitable for formations with higher penetration rates. The choice between matrix and steel drill bit depends on the specific drilling environment and target.

The performance of PDC drill bits largely depends on the quality and configuration of the diamond cutting machine. The advancement of cutting machine technology has led to the development of thermally stable polycrystalline (TSP) diamonds and diamond enhanced cutting blades, which exhibit improved wear resistance and thermal stability. The shape, size, and arrangement of the cutter play a crucial role in optimizing cutting efficiency and durability.

PRODUCT SPECIFICATIONS
product name	5 1/2 inch CM1305 matrix body PDC bit
size	5 1/2 inch,139.7mm
model number	CM1305
series	CM
body type	matrix body
primary cutter size	13mm
number of nozzle	5
number of blade	5
Make Up Torque(KN.m)	10.4~11.4
application	water well,oil well,HDD,exploration,etc
weight	23kg
certificate	SY/T5164,ISO9001:2008
ROCOMMENDED ROCK FORMATION
soft to medium formation with lower compressive strength and good drillability,such as marl,shale,lignite,sandstone,anhydrite,tuff ,etc.
RECOMMENDED OPERATING PARAMETERS
Rotary Speed(RPM)	60~250
Weight On Bit(WOB)	5~45
Max.WOB(KN)	80
Flow Rate(lps)	10~25

5 1/2 Inch Matrix Body PDC Bit for Soft to Hard Formation Oil and Water Wells

Company Profile

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
