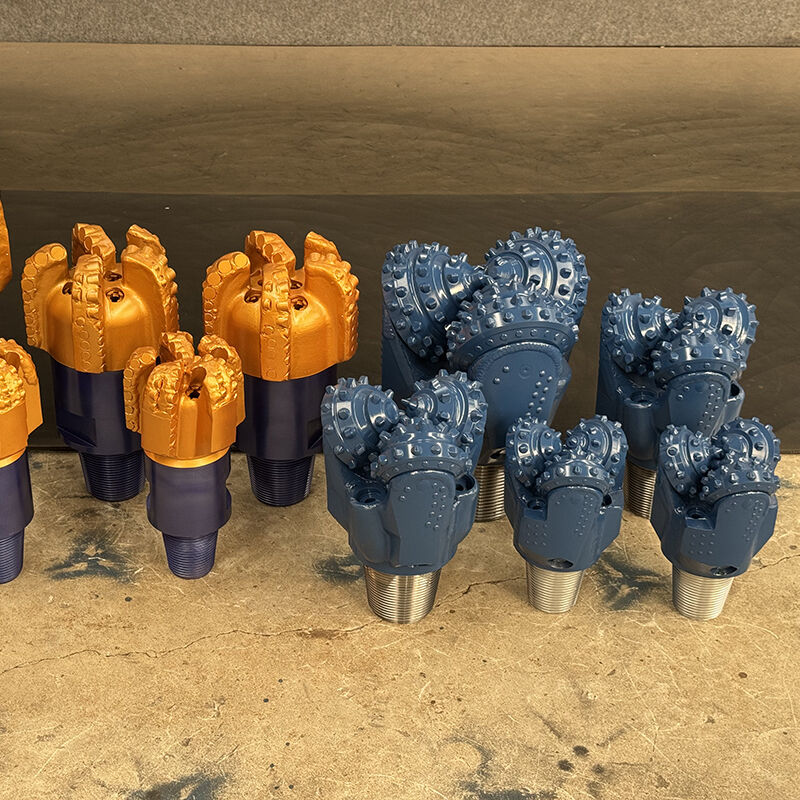

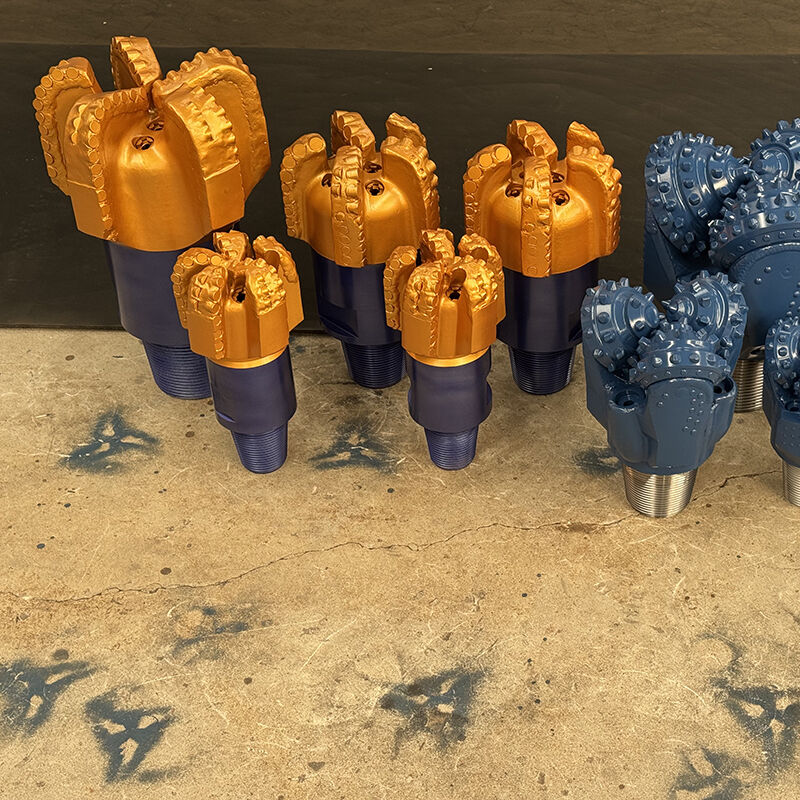

PDC Bits 5 Blades Steel Tooth Tricone Bits Oil Drilling Tools PDC Bit for Oil Drilling

Place of Origin:

Hebei,China

Certification:

ISO9001

Request A Quote

PDC Bits 5 Blades Steel Tooth Tricone Bits Oil Drilling Tools PDC Bit for Oil Drilling

Product Details

Product Name:

PDC Bits

Formation:

Soft To Hard

Material:

Carbide Steel

Body Material:

Matrix

Connection:

API

Origin:

China

Payment & Shipping Terms

Price

Negotiable

Packaging Details

According to customer needs

Delivery Time

5-15work days

Payment Terms

T/T

Supply Ability

50000PCS/Month

5 1/2 Inch Matrix Body PDC Bit for Soft to Hard Formation Oil and Water Wells

Get Best Price

5 1/2 Inch Matrix Body PDC Drill Bit for Soft to Hard Formation in Petroleum and Water Well Drilling

Get Best Price

High Performance 5 Blades Steel Body PDC Drill Bit for Soft To Hard Formation Oil Well Drilling

Get Best Price

12 1/4" 311.1mm PDC Diamond Bit 5 Blades

Get Best Price

Contact Now

Product Description

PDC Bits 5 Blades Steel Tooth Tricone Bits Oil Drilling Tools PDC Bit for Oil Drilling

PDC drill bits use shearing action to cut through rock layers, rather than the crushing or grinding effect of drum cones. This shear mechanism results in higher drilling speeds and smoother boreholes. The hydraulic design of this position is also crucial as it helps to remove and cool the cutting machine, thereby preventing thermal damage and maintaining drilling efficiency.

Effective fluid dynamics are crucial for the optimal performance of PDC drill bits. The nozzle placement and size are carefully designed to direct the drilling fluid onto the cutting surface, thereby enhancing debris removal and reducing drill head balls. Advanced Computational Fluid Dynamics (CFD) models are used to design positions that maximize hydraulic efficiency under various flow rates and pressure conditions.

PRODUCT SPECIFICATIONS
product name	5 1/2 inch CM1305 matrix body PDC bit
size	5 1/2 inch,139.7mm
model number	CM1305
series	CM
body type	matrix body
primary cutter size	13mm
number of nozzle	5
number of blade	5
Make Up Torque(KN.m)	10.4~11.4
application	water well,oil well,HDD,exploration,etc
weight	23kg
certificate	SY/T5164,ISO9001:2008
ROCOMMENDED ROCK FORMATION
soft to medium formation with lower compressive strength and good drillability,such as marl,shale,lignite,sandstone,anhydrite,tuff ,etc.
RECOMMENDED OPERATING PARAMETERS
Rotary Speed(RPM)	60~250
Weight On Bit(WOB)	5~45
Max.WOB(KN)	80
Flow Rate(lps)	10~25

PDC Bits 5 Blades Steel Tooth Tricone Bits Oil Drilling Tools PDC Bit for Oil Drilling

Company Profile

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
